China Cabinet Dimensions: 18 Inches Deep Is the Limit

The 8-inch gap nobody reconciles

Plan for a 16-inch cabinet and you can lose eight inches of walkway. That's the whole problem with published china cabinet dimensions: the two ranges most often quoted don't agree at the deep end, and the difference is bigger than the margin most dining rooms have to give.

Every figure here comes from a listing, a manufacturer or a named source — never from memory. Links may earn a commission; it has never decided a verdict.

Every figure here comes from a listing, a manufacturer or a named source, never from memory. Links may earn a commission; it has never decided a verdict.

LOOMLAN's buffet and china cabinet guide puts a standard cabinet at 48 to 60 inches wide, 60 to 84 inches tall, and 16 to 20 inches deep. ItemFits, in its china cabinet sizing page, says 48 to 72 wide, 72 to 84 tall, and 18 to 24 deep. Same furniture category, and the deep end differs by four inches at the top of each range; no source reconciles the two, or says whether the gap is measurement method or genuinely different products. Compare the shallowest of these two published figures (16 in) with the deepest (24 in) and you're looking at a spread of eight inches on a number you're supposed to be able to plan a room around.

What does that cost in a real room?

LOOMLAN asks for 36 inches of clearance once a dining room reaches 12x14 ft. Sketch your room assuming 16 inches of cabinet depth, then take delivery of something at 24, and you've spent eight of those 36 inches. Better than a fifth of the lane gone. You don't notice on paper. You notice when someone has to turn sideways to carry a dish past the cabinet.

So this piece is about depth as a clearance decision, not a spec-sheet line. If you're fitting a full-height cabinet into a room under about 13 feet across, the depth number is the one that decides whether the room still works. By the end you'll know which depth to measure, what to subtract, and where the published ranges stop being useful.

ItemFits also gives a single typical figure, which is more honest than a range: about 54 inches wide, 18 deep, 78 tall. Eighteen is a reasonable default. It is not a promise.

At a glance

• The pick: IdeaKey, for you need floor-to-ceiling storage in a narrow dining room where the cabinet has to sit against a wall without stealing walkway width.
• Also worth it: ModernMate, for you want the china display to double as a drinks station in a small apartment where only about two and a half feet of wall is free.
• How this was decided: published specifications and buyer reports across 5 products, compared below.

What a 24-inch cabinet leaves behind in a 12-foot room

Take a 12 ft dining room, 144 inches wall to wall. Put a 24-inch-deep cabinet against the long wall, a nominal 40-inch-wide table centred in what's left, and pull a chair out an assumed 20 inches on each side (no source here gives standard table or chair dimensions). You have 144 minus 24 minus 40 minus 40, which leaves 40 inches split between two sides. Twenty inches a side. That's not a walkway, that's a squeeze past.

The arithmetic only works if you stop centring the table. Push it off-centre and you get one usable route and one dead side. Plenty of rooms live that way. Just decide it on purpose.

Here's the subtraction across three room widths, with an 18-inch and a 24-inch cabinet on one wall, an assumed 40-inch table, and an assumed 20 inches of chair pull-out each side. The number shown is the walkway you get on the cabinet side if you push the table to leave the far side at 30 inches:

• 12 ft (144 in), 18 in cabinet: 36 in behind the cabinet. Just at threshold.
• 12 ft, 24 in cabinet: 30 in. Below comfortable passage.
• 13 ft (156 in), 18 in cabinet: 48 in. Comfortable, two people can pass.
• 13 ft, 24 in cabinet: 42 in. Fine.
• 14 ft (168 in), 18 in cabinet: 60 in.
• 14 ft, 24 in cabinet: 54 in.

So the breakpoint in a 12-foot room is 18 inches of depth. Every inch past that comes straight off the walkway, and by 24 inches you're down to 30. LOOMLAN's guide puts 30 inches as the acceptable minimum for a 10x12 room and asks for 36 inches once you're at 12x14, which lands in the same range as what the subtraction above produces. For actual buffet service, people standing at the cabinet with plates, LOOMLAN wants 36 to 42 inches behind it, and that pushes a 24-inch cabinet out of a 12-foot room entirely.

Two variables move this more than depth does. A 36-inch table buys back four inches; the round versus rectangular subtraction is often the cheaper fix. And chair pull-out varies depending on which chair measurements you took. Get those wrong and the depth calculation is decoration.

Depth is three numbers, not one

A china cabinet has three depths, and the listing gives you at most one of them. Interior shelf depth is what your plates sit on, and no sizing guide consulted here publishes it: every figure quoted is an exterior envelope. Case depth is the box itself. Crown and base overhang is the moulding that projects past the case at the top, the bottom, or both.

The number printed in the dimensions field is almost always the widest projection. The Amish Home, whose china cabinets span 37 inches to 89 inches wide, says plainly that the stated size is measured at the widest point on the cabinet, usually the crown moulding rather than the case. That single sentence does more work than most sizing guides. It means the published figure and the figure your wall actually contacts may be two different things, and no source consulted here states how large the gap is.

Which one you plan off depends entirely on the install:

• Alcove or between-two-walls fit: use the published number. The crown is the part that will hit the plaster, so if it doesn't clear, nothing else matters.
• Open wall run, or a cabinet next to a sideboard: the case number is the one that governs whether the two sit flush, though no source consulted here publishes case dimensions separately from overall dimensions.
• Behind a chair: the deepest projection at seat-back height governs, though again no source separates plinth or base projection from the stated depth.

None of the five cabinets here publishes a case depth separate from its overall depth, so their stated depths aren't strictly comparable numbers. Measure the piece you can, and treat the rest as an estimate.

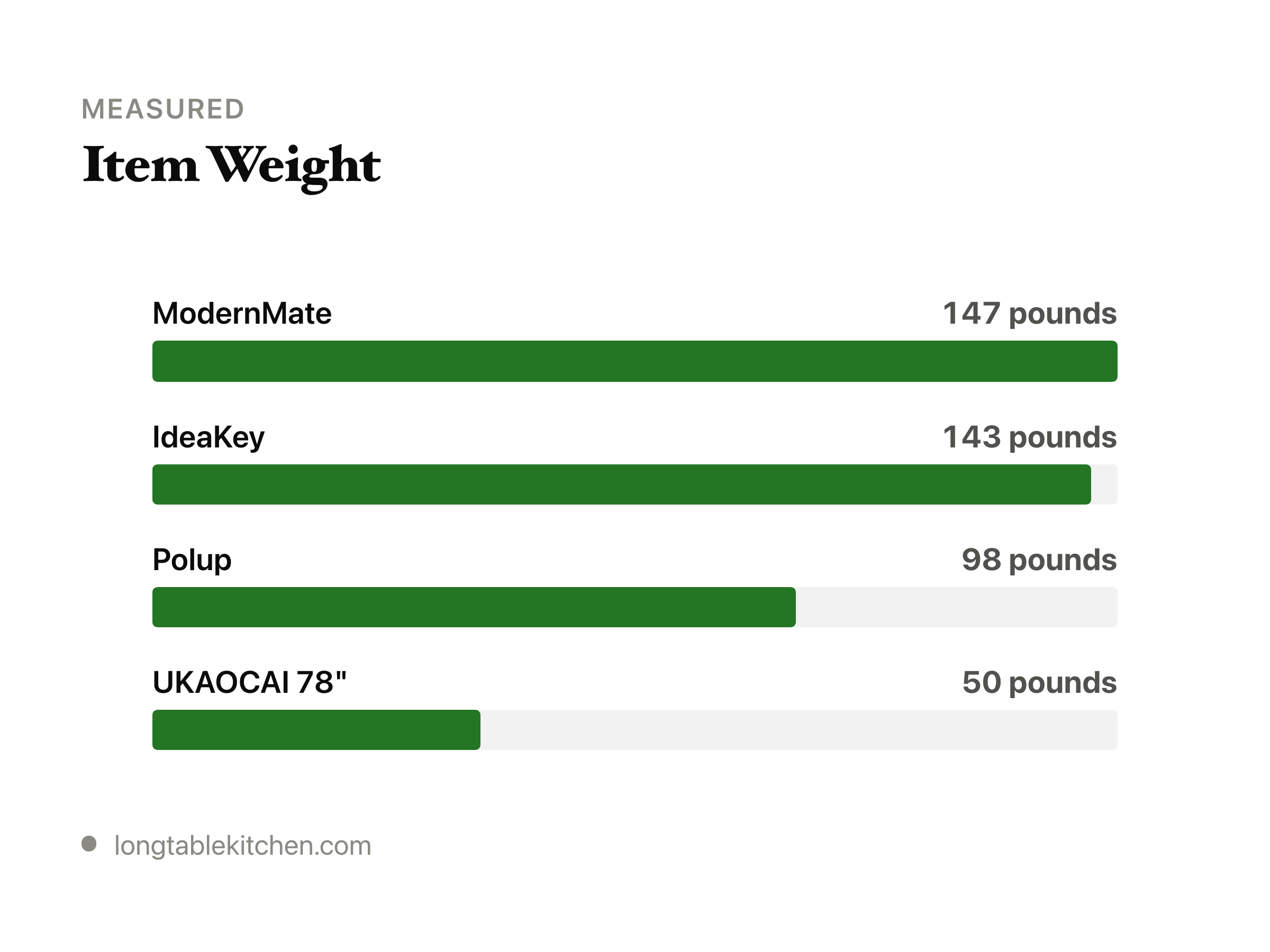

Product	Product Dimensions	Material	Item Weight	Additional Features	Best for
IdeaKey	15.7"D x 46"W x 78.7"H	Engineered Wood	143 pounds	Adjustable Shelf	Best tall narrow
ModernMate	15.8"D x 31.5"W x 71"H	Engineered Wood	147 pounds	2 Drawers, 3 Removable Wine Racks, Adjustable Shelf, Detachable Compartments, LED Light with Remoter	Best narrow bar
MU MU	—	Engineered wood	—	—	Best wide display
UKAOCAI 78"	14.6"D x 63"W x 78"H	Engineered Wood	50 pounds	Adjustable Shelf	Best shallow footprint
Polup	16"D x 32"W x 71"H	Metal	98 pounds	Adjustable Feet, Adjustable Shelf, Heavy Duty, Lockable, Removable Shelf	Best lockable

Specifications as the listings give them. “Best for” is our assessment, not a manufacturer claim.

Narrow it down

• IdeaKey, not for you if this matters: 15.7" depth is tight for oversized chargers or serving platters.
• ModernMate, not for you if this matters: 71" tall but only 31.5" wide, so total shelf capacity is modest.
• MU MU, not for you if this matters: solid lower doors need the same clearance as glass ones when open.

Will it get through the front door?

A 78-inch cabinet, assembled, does not go through your front door standing up. ItemFits puts the single-piece height at about 80 inches and says a 78-84 inch piece never fits upright through a standard door and rarely goes up a tight staircase; it describes the assembled cabinet as one tall, top-heavy piece. That's the whole delivery problem in one line.

Split it, though, and the arithmetic changes completely. ItemFits gives the lower buffet base as roughly 36 inches tall, which leaves the hutch as the taller half of an approximately 80-inch piece. Both halves clear a 32-inch doorway easily. Which leaves depth as the only dimension that can still stop you. At 18 to 24 inches, ItemFits says depth is the only dimension that ever challenges a doorway when a piece is tilted.

One terminology snag worth knowing before you order. The Amish Home uses "buffet" for the lower solid-door section and "display" for the upper glass section, so a buffet can be a component rather than a standalone piece. LOOMLAN, by contrast, treats buffets as a separate product type with their own dimensions (60-72 in wide, 30-36 in tall, 18-22 in deep). If a two-piece cabinet is what you want, and the listing says buffet with hutch, check whether it ships as two boxes or one. That answer decides your stairs.

For the standalone version, see sideboard dimensions and how a buffet fits a dining room.

Door count tells you width and nothing else

Showrooms sell by door count. Ask about a china cabinet in a traditional furniture store and you'll hear "two-door" or "three-door" long before anybody says a number in inches. The Amish Home lists its cabinets that way, with three-door as the usual floor display. Across the named Amish Home cabinets, the two-door examples are 37 and 39 1/4 inches wide, the three-door examples 61 to 66 3/4, and the four-door examples 68 and 69 (the Larkspur three-door at 63 3/4 falls inside that middle band).

That much is useful shorthand. Here's where it falls apart.

The two-door Americana in oak measures 37 inches wide, 18 deep and 89 inches tall. Its four-door sibling is 68 inches wide, and the same 89 inches tall, the same 18 deep. Two doors bought you 31 fewer inches of wall and not one inch of ceiling. The 37-inch two-door Americana is the narrowest of the named cabinets and, at 89 inches, among the tallest of them. So if you've been assuming a two-door is the small one, check the height column before you assume anything about the doorway or the ceiling.

The three-door figures vary too. The Hampton in cherry is 66 3/4 by 20 by 81 1/2. The Newport Shaker in quartersawn white oak is 61 by 19 by 82 1/2. The two-door River View comes in at 39 1/4 wide, 16 deep, 74 1/2 tall, the shallowest and shortest of the lot, and still listed in the same china cabinet category as that 89-inch Americana.

Across these named cabinets, door count tracks width but not height or depth.

Reading depth and width as separate constraints

LOOMLAN separates a display cabinet category, 36-48 inches wide, 14 to 18 inches deep, 72 to 84 inches tall, from china cabinets proper. ItemFits draws the line differently, treating curio and display cases as narrower units at 28 to 40 inches wide. The two categories are defined differently by each source, and neither addresses the other.

So read the depth column first, then the width, and treat them as separate constraints.

Where the walkway behind the cabinet is what's binding, a shallower body is the one to want, and the inches saved can go into wall length instead. If you have the clear wall and a tight route behind the chairs, look for the shallowest body you can find and confirm its depth with the seller.

Confirm the width and depth figures directly with the seller before you commit: The Amish Home states all its listed sizes are nominal and should be confirmed with an associate before purchase. On material life, LOOMLAN puts metal accents at 20-plus years against 15 to 20 for engineered wood and 25-plus for solid hardwood.

Three measurements to take before you sign anything

The Amish Home's own hutch guide says every size it lists is nominal and should be confirmed with an associate before you order. That's not a disclaimer to skim past. Its four-door Americana comes in 3 tops, 6 bases, 3 crown moldings, 5 door styles and 5 feet styles: 1,350 combinations before you pick wood, stain or hardware.

So take these three numbers yourself, with a tape, before you sign:

• Case depth at the base, not at the shelf. Feet and plinths project, so the carcass figure is not necessarily the obstruction in your walkway.
• Height including crown. No source consulted here states how much the crown adds above the case, so measure it rather than assuming the quoted figure is the clearance you need.
• Width at the widest projection. The Amish Home states its listed width is measured at the widest point, usually the crown molding rather than the case. That is the number that matters for an alcove fit.

Then match the cabinet to your constraint rather than to a verdict. Match it on the constraint that binds in your room: the walkway depth, the clear wall width, or the alcove opening. No dimensions for specific retail models are verified here, so take each figure from the seller.

One more thing worth knowing before you choose a finish. Mainline Kitchen Design reports that painted finishes are less durable than stained on every cabinet brand, that chipping isn't evidence you bought cheap, and that paying more doesn't buy tougher paint; it adds that chipped or scratched painted finishes can be repaired professionally and count as normal maintenance rather than a warranty failure. That source covers kitchen and semi-custom cabinetry, though, and no source confirms its findings transfer to freestanding china cabinets.

Eight inches. That's the gap between the shallowest and deepest figures in those two published ranges, and no listing will reconcile it for you.

The pick

IdeaKey, best for you need floor-to-ceiling storage in a narrow dining room where the cabinet has to sit against a wall without stealing walkway width.

When the winner is wrong for you:

• For you want the china display to double as a drinks station in a small apartment where only about two and a half feet of wall is free: ModernMate.
• For you have a long dining wall and want maximum glass-front display capacity while still keeping the cabinet under 16 inches deep: MU MU.
• For you want a farmhouse-look hutch and the walkway behind it is the binding constraint, so every inch of depth matters: UKAOCAI 78".

Worth knowing about the IdeaKey: 15.7" depth is tight for oversized chargers or serving platters
